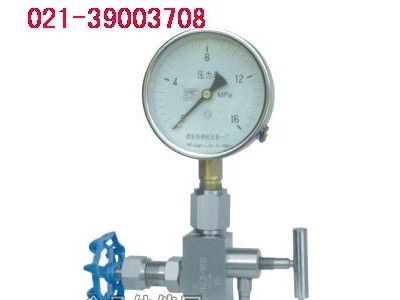

多功能针型阀主要零件材料：
| 零件名称 Part name | 阀体 Body | 阀杆 Stem | 阀底座,法兰 base, Flange | 填料 Packing | 阀料阀盖Packing bonnet | 手轮Handwheel |
| CJ123H1-250-DN15 | 铬镍不锈钢 Cr. Ni Stainless steel | 铬镍不锈钢 Cr. Ni Stainless steel | 铬镍不锈钢 Cr. Ni Stainless steel | 聚四氟乙稀，柔性石墨 PTFE，Soft graphite | 不锈钢Stainless steel | 优质碳钢High grade carbon steel |
| 型号 Type | 公称压力PN Mpa | 试验压力PS(Mpa)_Test pressure | 工作压力(Mpa) Working pressure | 工作温度(OC) Working temps. | 适用介质Applicable medium | ||
| 壳体 Shell | 密封(液)Seal | 密封(气)Seal | |||||
| CJ123H1-250-DN15 | 25.0 | 37.5 | 27.5 | 0.6 | 25.0 | P≤540OC | 液化石油气水，酸，蒸汽，油品等 Petroleum gas Water，As，Steam，Oil，etc. |
| C≤425 OC | |||||||
| 型号 Type | 公称直径DN（mm） | 尺寸 Dimension | 重量(kg)Weight | |||||
| RA | Rc | Do | H | H1 | d | |||
| CJ123H1-250-DN15 | 15 | M20×1.5 | G1/2” | 65 | 100 | 110 | 5 | 1.4 |
